Lonsdor K518 Pro: Full Version
3 Lonsdor K518 Pro: Full Version
Contact me to Get the Best Price !!!
Whatsapp:+86 15377698251
Email: sales@godiagshop.eu
Whatsapp:+86 15377698251
Email: sales@godiagshop.eu
Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 Days.See details »
Weight:
3.6KG
Package:
34cm*23.5cm*20cm
( Inch: 13.39*9.25*7.87 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
Product Description
- Lonsdor k518 Pro Full Version with LT20 Smart Key 2pcs, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD FCA 12+8 FCA, JLR Cable and ADP Adapter
- With free Volvo, Nissan new Sylphy Sentra, Toyota AKL, JLR AKL license within software update subscription.
- Global Version, all models are equipped with it. 2 years free update, multi-language
Lonsdor K518 PRO is an all-in-one key programmer developed by Lonsdor. K518 PRO is a multi-functional car key IMMO matching tablet and It is the second generation product of Lonsdor K518. In addition to integrating all the functions of the first generation, it adds more advantageous functions.
The device includes IMMO remote control matching, mileage recovery, key generation, adapter, chip identification copy, and key chip generation, remote control frequency detection, ignition coil detection, Toyota smart key settings, one-click upgrade, push function, etc.
Lonsdor K518 Pro Highlights:1. Full Version with LT20 Smart Key 2pcs, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD FCA 12+8 FCA, JLR Cable and ADP Adapter
2. Built-in LKE Smart Simulator Function
3. 2 Years Free Update. $480 (1st Subscription), $360 (2nd Subscription), $200 (3rd Subscription)
4. With free Volvo, Nissan new Sylphy Sentra, Toyota AKL, JLR AKL license within software update subscription. (Don't need to pay for license seperately)
5. Support CAN FD and DOIP. Supports GM CAN FD models 2021-2023
6. Support 24V Lorry and Heavy Trucks
7. Multi-language Switchable: English, Spanish, Portuguese, Polish, Italian, German, French, Swedish, Thai, Indonesian, Russian, Turkish, Burmese, Khmer and Hebrew
8. Global Version: Includes exclusive models, Indian and Malay models. Those that were not equipped before are all standard. Now it is the global version and all models are equipped with it.
9. Lonsdor K518 Pro Car List(update frequently) Check Online: http://testen.lab.lonsdor.com/menulistinfo/197
11. With the help of Lonsdor KPROG2 KPROG-2 Adapter(optional) to read and write an eeprom soic chip/mcu chip. Get data for backup or replacement.
10. Super update: Adds VAG MLB Key programming(Dec. 2023), need work with KYDZ MLB Tool together
K518 Pro Features:
1. Modern tablet design with support bracket to further enhance user experience;
2. Build Android 9 system to optimize the operating experience;
3. The quad-core A7 has the strongest computing power, twice that of the A33;
4. Excellent and powerful ultra-high energy efficiency ratio;
5. Be the first to support 8A type (H chip) chip generation;
6. Added support for CANFD protocol and Ethernet protocol.
Functional advantages:
1. Based on the original K518, the functions are more comprehensive;
2. All high-end models are available, as well as common domestically produced cars
3. Most models do not require Internet access, authorization codes, and OBD matching without disassembling.
4. Built in LKE,Bluetooth,File Management, Anti-Theft Deactivation, Access Card Copy;
5. Data Write Initialization, EEPROM Data Mileag
6. Restoration,CAN-FD Protocol, DOIP Protocol.
7. Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
8. Support generate key chip like 4D,46,48,T5,793
Lonsdor K518Pro Special Functions:
Generate remote: Detect remote key's frequency
Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generation
Identify&Copy chip: Identify info and status of almost all car key chips on the market
Simulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc
Decode chip: Support 46 and 4D chip decoding
Ignition coil Detect: if the coil has signal, also identify key type on AKL condition
Key settings: Set Lonsdor LT20 series smart key type
Unlock key: Unlock Toyota 8A smart key
Access control card: Identify and copy IC/ID card
5. Data Write Initialization, EEPROM Data Mileag
6. Restoration,CAN-FD Protocol, DOIP Protocol.
7. Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
8. Support generate key chip like 4D,46,48,T5,793
Lonsdor K518Pro Special Functions:
Generate remote: Detect remote key's frequency
Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generation
Identify&Copy chip: Identify info and status of almost all car key chips on the market
Simulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc
Decode chip: Support 46 and 4D chip decoding
Ignition coil Detect: if the coil has signal, also identify key type on AKL condition
Key settings: Set Lonsdor LT20 series smart key type
Unlock key: Unlock Toyota 8A smart key
Access control card: Identify and copy IC/ID card
Lonsdor K518Pro Highlight model list:
Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO
Latest Toyota/Lexus chip type 8A/4A smart key programmed with free pin code
2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)
Land Rover/Jaguar 2018- Change RFA module to program smart key
2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key
Latest Mazda smart key all key lost w/o PIN code
Latest Honda chip type 4A smart key all key lost
Latest Subaru chip type 8A smart key programmed
Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost
Latest Hyundai/Kia chip type 4A/47 smart key programmed
Latest Ford Mustang IMMO program
BMW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO
Latest GM CAN-FD protocol IMMO
90% of 2010-2020 GM models read pin code from BCM
Volkswagen/ Audi/ Skoda/ Seat MOB platform IMMO and odometer adjustment
Ssangyong smart key and mechanical key program
Latest Maserati read pin code and smart key program
Ferrari(458,F12, F149) key programmed via OBD
Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.
Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.
Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.
Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.
Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc
Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.
Accessories Comparison of K518ISE & K518PRO
| Accessories Comparison | ||
 |
VS |  |
| K518ISE | Type | K518PRO |
| Work with LKE | Enhanced Toyota/Lexus Simu-Antenna | Built in |
| Support | KPROG adaptor | support |
| Support | 16+32 cable | support |
| Support | L-JCD cable | support |
| Support | JLR cable | support |
| Support | Third part decoder | support |
K518PRO/K518 Series SEAT UPDATE July 19th, 2024:
SEAT\Select from vehicle\Alhambra\2001-2010\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\Alhambra\2001-2010\IMMO
SEAT\Select from vehicle\Alhambra\2001-2010\Remote
SEAT\Select from vehicle\Alhambra\2011-\IMMO\Auto detect
SEAT\Select from vehicle\Alhambra\2011-\IMMO\Dalu CAN instrument(NEC+24C64 2013)
SEAT\Select from vehicle\Alhambra\2011-\IMMO\Dalu CAN instrument(NEC+24C64)
SEAT\Select from vehicle\Alhambra\2011-\Remote
SEAT\Select from vehicle\Altea\2004-2015\IMMO\Auto detect
SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(CDC32XX+24C32)
SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C32)
SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C64 2013)
SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C64)
SEAT\Select from vehicle\Altea\2004-2015\Remote
SEAT\Select from vehicle\Cordoba\1999-2009\Bosch K line-IMMO
SEAT\Select from vehicle\Cordoba\1999-2009\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\Cordoba\1999-2009\Remote
SEAT\Select from vehicle\Exeo\2009-2014\Bosch K line-IMMO
SEAT\Select from vehicle\Exeo\2009-2014\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\Exeo\2009-2014\Remote
SEAT\Select from vehicle\lbiza\2002-2009\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\lbiza\2002-2009\IMMO
SEAT\Select from vehicle\lbiza\2002-2009\Remote
SEAT\Select from vehicle\lbiza\2008-2016\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Auto detect
SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(CDC32XX+24C32)
SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C32)
SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C64 2013)
SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C64)
SEAT\Select from vehicle\lbiza\2008-2016\Remote
SEAT\Select from vehicle\Leon\2000-2006\Bosch K line-IMMO
SEAT\Select from vehicle\Leon\2000-2006\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\Leon\2000-2006\Remote
SEAT\Select from vehicle\Leon\2006-2013\IMMO\Auto detect
SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(CDC32XX+24C32)
SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C32)
SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C64 2013)
SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C64)
SEAT\Select from vehicle\Leon\2006-2013\Remote
SEAT\Select from vehicle\Mii\2012-\IMMO\Auto detect
SEAT\Select from vehicle\Mii\2012-\IMMO\Marelli CAN instrument(Marelli 95320)
SEAT\Select from vehicle\Mii\2012-\IMMO\Marelli CAN instrument(Marelli 9S12)
SEAT\Select from vehicle\Mii\2012-\Remote
SEAT\Select from vehicle\Toledo\1999-2004\Bosch K line-IMMO
SEAT\Select from vehicle\Toledo\1999-2004\Engine\Bosch(ME7.1/7.5/7.8)-Engine
SEAT\Select from vehicle\Toledo\1999-2004\Remote
SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Auto detect
SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(CDC32XX+24C32)
SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(NEC+24C64 2013)
SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(NEC+24C64 2014)
SEAT\Select from vehicle\Toledo\2005-2010\Remote
K518PRO/K518 Series Update INFINITI IMMO July 11th, 2024:
North America
QX60\2022-2023
EX37\2013
FX35\2003-2009
FX45\2008-2009
G37x\2008-2010
M35\2009-2010
M45x2009-2010
Q40\2015
Q50\2016-2023
Q60\2014-2022
Q70\2014-2019
QX50\2014-2018
QX60\2020-2021
Canada
FX35\2008-2009
FX45\2008-2009
QX60\2020-2021
Middle East
QX80\2014-2020
Asia
QX50\2017-
OX60\2022-
QX80\2014-2023
Europe
EX37\2010-2014
FX45\2009
Australia
Q60\2013-2016
Q60\2016-2019
Q70\2014-2019
QX80\2014-2019
K518PRO/K518 Series Update BMW/PEUGEOT/CHERY April 9,2024
BMW
BMW\EWS
PEUGEOT
General area\Boxer2010-2023\lmmobilizer
General area\l0N 2009-2019\Mechanical key
Europe\Boxer 2010-2023\lmmobilizer
Europe\l0N 2009-2019\Mechanical key
South America Boxer 2010-2023\lmmobilizer
CHERY
Explore series\Explore 06 \2023-
Tiggo series\Tiggo 9\2023-
Fulwin series\Fulwin A8\2024-
K518PRO/K518 Series Update CADILLAC/GMC/BUICK/CHEVROLET Renault/Dacia on March 10th, 2024:
Note: CANFD protocal car models only supported by K518PRO.
Please update your device to check the details.
Specifications:
Operating system: android 9
Processor: Rockchip PX30
Memory: ram 2G flash 8G
Display: MIPI 800*1280
WiFi: (802.11 b/g/n)
USB: USB2.0
Bluetooth: 4.1
SD card: supports plugging and unplugging
Battery: 5800MAH
Input voltage: 12V
Shell material: PC hard shell + TPR60 °
Size: 26*3*16CM

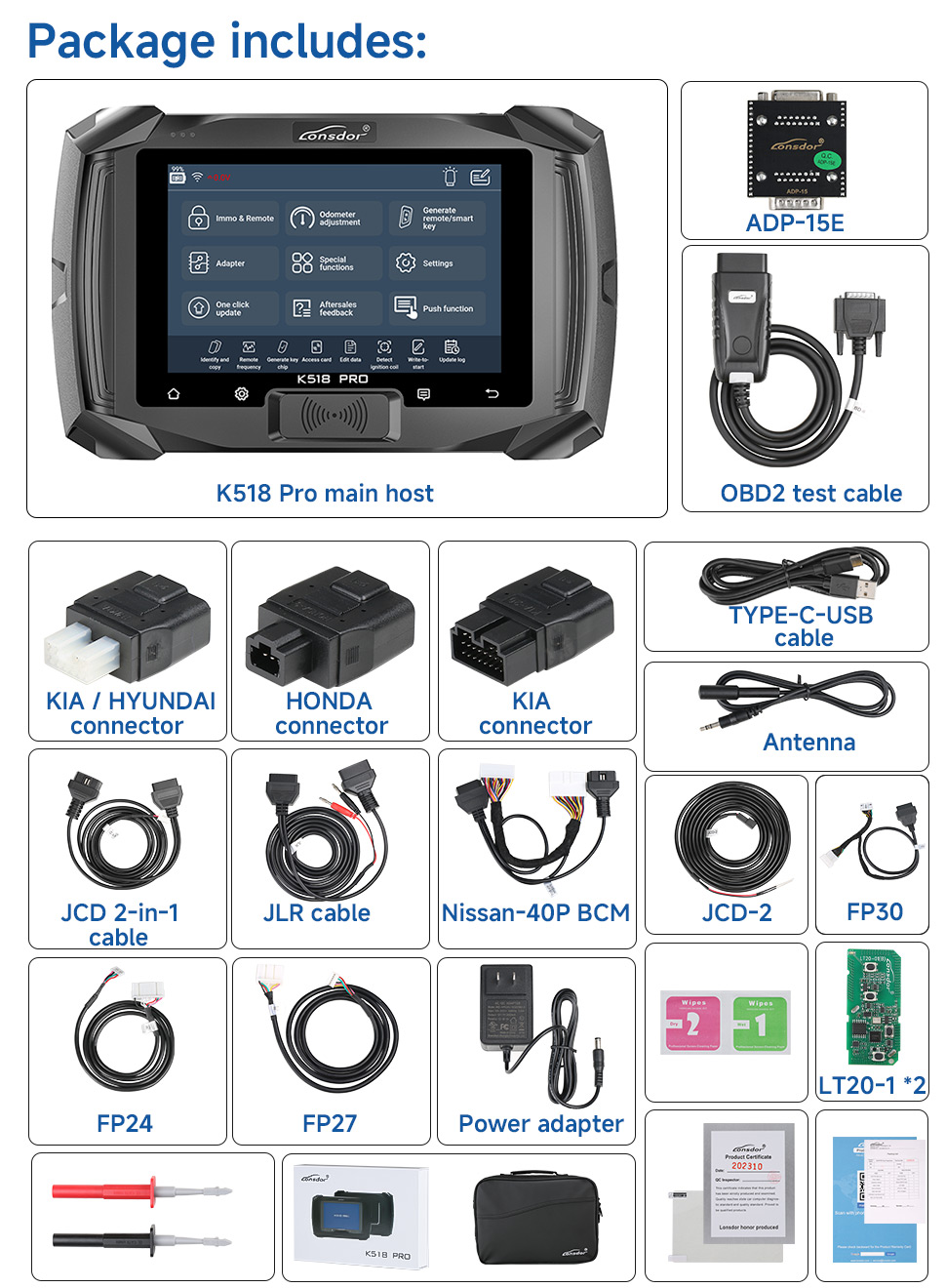

Package includes:
1pc x K518 Pro main host
1pc x Power adapter
1pc x Acquisition Antenna
1pc x Type-C cable
1pc x KIA/HYUNDAI connector
1pc x HONDA connector
1pc x KIA connector
1pc x HONDA connector
1pc x KIA connector
1pc x OBD2 test cable
1pc x Certificate & user manual card
1pc x Main unit packing bag
2pcs x LT20 smart key(gift)
1pc x Toyota FP30 cable(gift)
1pc x Toyota FP27 cable(gift)
1pc x Toyota FP24 cable(gift)
1pc x Toyota FP27 cable(gift)
1pc x Toyota FP24 cable(gift)
1pc x Nissan-40P BCM cable(gift)
1pc x JLR cable(gift)
1pc x JCD 2-in-1 cable(gift)
1pc x ADP-15 adapter(gift)
Contact us:
Whatsapp: +86 15377698251
Email: sales@godiagshop.eu
Videos
Demo instruction on Fiat update in Lonsdor K518 PRO April 23 Menu path and program process guide
Lonsdor K518 PRO Obtain P1 P4 page data when AKL
Lonsdor K518 PRO Covert LT20 Universal Smart Key Type by Detecting Original Key
Lonsdor K518 PRO Unlock Genuine OEM Chip Type 8A Keys
How to identify FEM keys for Lonsdor K518 with GODIAG FEM BDC Adapter
How to use lonsdor k518 key programmer with GODIAG CAS4 CAS4+ Test Platform
Technical Support
Lonsdor K518 Pro Registeration GuideNote: after booting the device, please set and connect WIFI well, then go throughthe registration&activation process.
New user:
① For the first use, please prepare an available mobile phone or E-mail to helpfinish device registration and activation, click OK to start;
② Boot the device and enter registration&activation process;
③ Enter user name, password, mobile number or E-mail to get verification code,then enter the code and submit registration;
④ New account is registered successfully, set the device’s power-on password;⑤ Submit the info, apply for binding the user to the device;
⑥ Verified by the server, successful registration;
⑦ Initialize menu and etc;
⑧ Reboot and enter the device system.
Registered user:
① For the first use, please prepare the corresponding mobile phone or E-mailof the registered account to help finish device registration and activation,click OK to start;
② Boot the device and enter registration&activation process;
③ Enter the registered mobile number or E-mail to get verification code, thenenter the code and submit login;
④ Account login successful, set the device’s power-on password;
⑤ Submit the info, apply for binding the user to the device;
⑥ Verified by the server, successful registration;
⑦ Initialize menu, etc;
⑧ Reboot and enter the device system
Buy more and Save more
Customers who viewed this item also viewed
![[EU Ship Free Shipping] Xhorse VVDI Key Tool Plus VAG Version XDKP02GL for VW, Audi, Seat, Skoda with Free MQB48 License](/upload/pro-sm/24070117198878802443.jpg)
